Sample Tube


Atmosphere sampling tube for extracting atmosphere where the velocity and catalytic impact is critical for ensuring the sample is not compromised.

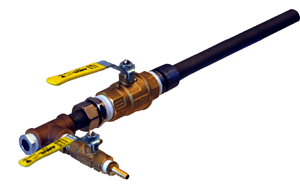

PGA3500 Sample Tube

PART NUMBER 20263

Sampling Wand Assembly
31" (787.4 mm) Sample Tube, RA330 Alloy
Maximum insertion length 22.125" (561.9 mm)
Includes all valves, connectors, and fittings
0.84" (21 mm) O.D. steel tube with ceramic insert
Includes ball valve and 1" NPT Nipple for mounting in a 1" NPT bushing
PGA3500_Sampletube

PART NUMBER 20264

MGA Sampling Wand Assembly
31" (787.4 mm) Sample Tube, RA330 Alloy
Maximum insertion length 22.125" (561.9 mm)
0.84" (21.3 mm) O.D. steel tube with 0.19 ft. (57.9 mm) ceramic insert
Includes: high temperature filter, sample ball valve, auxiliary sampling port, adjustable gland for variable insertion depth, connectors and fittings
Mounts in a 1" (25.4 mm) NPT bushing
IMG_8522-copy-1

PART NUMBER 20566

Sampling Wand Assembly
45.5" (1155.7 mm) Sample Tube, RA330 Alloy
Maximum insertion length 36.625" (930.2 mm)
Includes all valves, connectors, and fittings
0.84" (21.3 mm) O.D. steel tube with ceramic insert
Includes ball valve and 1" NPT Nipple for mounting in a 1" NPT bushing

PGA3500_Sampletube
