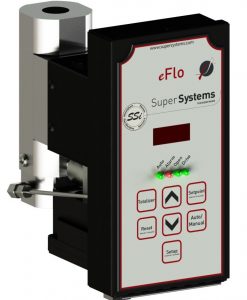

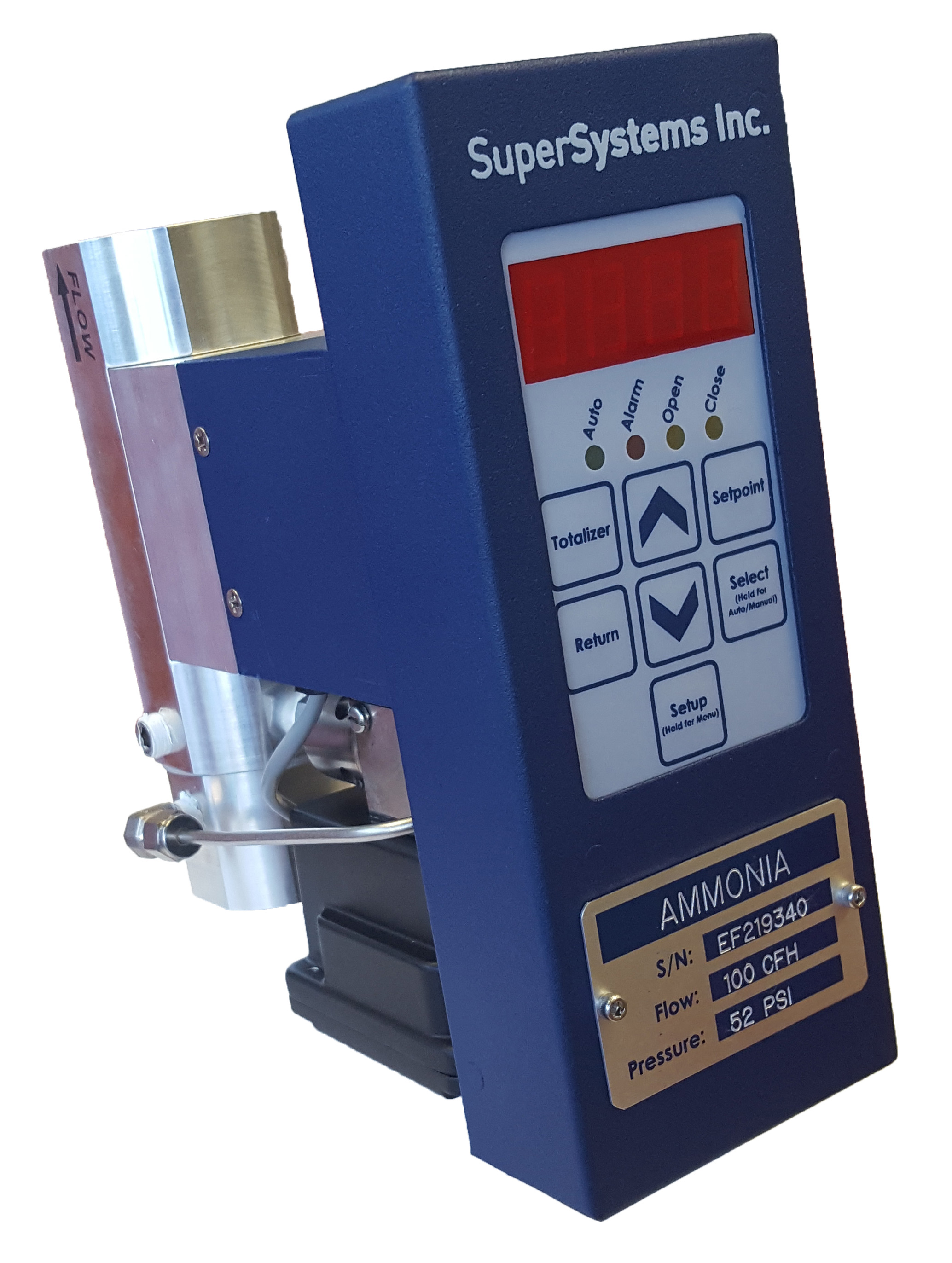

eFlo – H

Electronic High Pressure Gas Flow Meter

eFlo-H is an electronic flow measurement instrument used to display and control the flow of gases at high pressure. With simple compatibility with existing controls, tracking and monitoring gas flow has never been easier. Designed for use in the harshest industrial environments, eFlo allows for easy replacement of manual flow meters and seamlessly integrates into existing control systems.
Features and Benefits

Available with electronic valve, with manual valve, and without control valve
Digital display with easy-to-use touch pad
Precision flow measurement
Direct and remote setpoint control
Utilizes FlowMeter View software
Easy retrofit for existing flow measuring equipment
Flow calibration can be certified while in use to meet CQI-9 requirements
SCADA Integration: Current Flow, Totalized Flow, Setpoint, Cost Calculation
Built-in high/low flow alarms
Flow totalizing
Analog control and feedback for data acquisition
Integrated comms via Modbus over RS485
Indicator LEDs: Process Data Display; Alarm (Hi/Low); Auto/Manual; Open/Close; Motor Drive
Tactile Keypad: Totalizer; Reset; Setpoint; Auto/Manual; Setup
USB configuration
Ethernet
Mobile friendly configuration

Supported Gases


AcetyleneHelium
AirHydrogen
AmmoniaHydrogen Chloride
ArgonHydrogen Sulfide
ButaneMethane
Carbon DioxideNatural Gas
Carbon MonoxideNeon
ChlorineNitrogen
Dissociated AmmoniaNitrous Oxide
Endothermic Gas (C3H8)Oxygen
Endothermic Gas (CH4)Propane
EthaneSulfur Dioxide
EthyleneOther (Contact SSi)
Exothermic Gas

Power Required:24VDC @ 400mA
Accuracy:±4%
Turndown Ratio:6:1
Medium Temp. Limits:-10°F to 150°F (-20°C to 65.6°C)
Ambient Temp. Limits:-10°F to 150°F (-20°C to 65.6°C)
Flow Output Signal (Linear):4-20mA
Max. Output Signal Load:500Ω
Input Control Signal (Linear):4-20mA
Response Time:1 - 10 seconds
Communications:RS485, Ethernet
Communications Protocol:Modbus RTU
Flow Meter Pressure Limits:100 psig max.
