Single-Loop Controllers

20Q Controller
7EK - 1/8 DIN Temperature Controller

1/8 DIN, Universal inputs
4 Relay outputs (P/N 31080)
1 Current (4-20mA) and 3 relay outputs (P/N 31081)
1 Slide-wire and 2 relay outputs (P/N 31082)
Smart tuning function
Modbus communications
UL and cUL approved, CE marked


7SL - 1/16 DIN Overtemp High Limit

1/16 DIN, Universal inputs
FM Relay Output + additional alarm relay output
Modbus communications optional
FM, UL, and cUL approved, CE marked

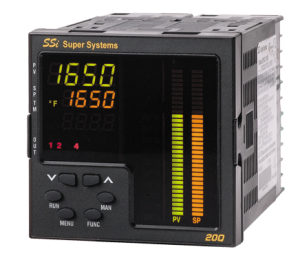

20Q Temperature Controller

1/4 DIN, Universal inputs (P/N 31091)
Wide range of outputs (Relay, SSR, Triac, Servo)
11 logic inputs, 14 digital outputs, Clock / Calendar
Smart tuning function
Modbus communications
3 row, 4 digit LED, 2 bar-graph LED display
IP65, NEMA 4X
4 digital outputs,2 isolated mA outputs
Remote setpoint input
UL and cUL Approved, CE marked.


Product Cut Out Dimensions

ProductCut Out Dimensions
20Q3.63W X 3.63H X 4.06 D in.
92W X 92H X 103D mm
7EK1.78W X 3.63H X 4.06 D in.
45W X 92H X 103D mm
7SL1.78W X 1.78H X 4.06D in.
45W X 45H X 103D mm


Specifications

Control ModesPID or On/Off, motorized valve
Power100 – 240 VAC, 50/60Hz
Operating Ambient 32°F to 130°F (0°C to 55°C) 20 - 85% RH non-condensing
InputsUniversal thermocouple


Outputs

Relay2A, 264VAC resistive
Logic18VDC, 20mA
Triac1A, 264VAC resistive
DCIsolated 0-20mA at 12VDC


Cut Out Dimensions

20Q3.63W X 3.63H X 4.06 D In
92W X 92H X 103D mm
7EK1.78W X 3.63H X 4.06 D In
45W X 92H X 103D mm
7SL1.78W X 1.78H X 4.06D In
45W X 45H X 103D mm
