SuperDATA Software Package

An HMI/SCADA package designed for the Heat Treat Market, SuperDATA contains a communication and data logging module, a visualization module and a trending module. Drive efficiency with an interface to your shop floor that provides real-time and historical process and load data efficiently.

Super Systems, your Heat Treat Automation Experts, are leading the way with IIoT and Industry 4.0 solutions for shop floor SCADA. We are your path to intelligent heat treating.



Features

Communications – DataCENTER, the data logging communications engine
Trend Display - SDRecorderPRO
Visualization - RealTimePRO/RealEditPRO
Alarm and Event Viewers
OPC Client/Server
Database integration
Scaleable to integrate

Justification

Proven solution - hundreds of installations covering thousands of furnaces worldwide, logging millions of data points
AMS 2750 and CQI-9 Compliant
Easy to use and administer
Cost-effective - no tag-based licensing
Integration point available for ERP
Reduced paper
Reliable data logging
Consistent, uninterrupted data logging

Plant Wide Data Acquisition

Continuous data logging
User-defined logging intervals down to 1 second
Paperless recording system
Quick access to realtime and historical data
Expandable to other equipment
Cost-effective, non-tag-based SCADA software
Collect, manage, and analyze data easily
Backwards compatible with Process Master alarm history and event tracking
Communications watchdog to ensure continuous data logging

Mobile Charting

Mobile
Realtime and historical data
Tabular data view
Trend line data view
Notes entry
Date selection
Zoom/unzoom
Selectable display time

SD Status

Status
Can be user-configured to monitor numerous conditions such as:

  • Server communications downtime

  • Loss of communications to individual equipment

  • Select alarm condition(s) from individual equipment

Provides programmable e-mail/text alerts when defined events occur.

  • E-mails can be configured for certain times and days of the week

  • E-mails can be set up to be sent after an alarm has been active for a user-defined amount of time

Furnace Utilization and Reporting

FURS2
Utilization by entire department or each piece of data logged equipment in the department
Uses Historical data log files from compressed SuperDATA logs
Cost per load reporting
Turns tabular data into graphical data

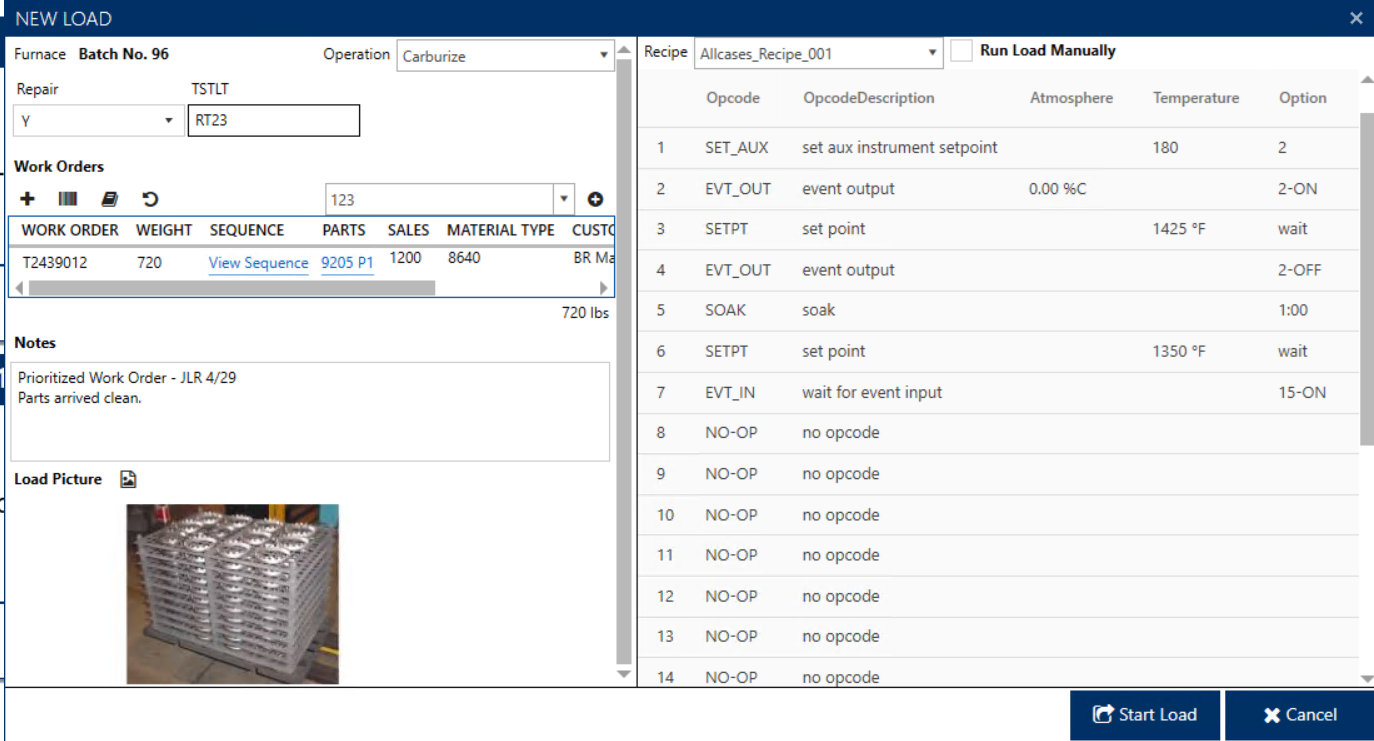

Standard Load Entry

Automatic downtime tracking
Customizable display
Recipe database with revision control, unlimited recipes, and recipe profile view
Combines Load Tracking, Visualization, and Management Reporting
Load reports with Process Data
Recipe Management with Parts Database
Mobile Load Entry Application with Furnace view, Gap Time entry, Capture Load Photo/Image, Scan traveler for load start, Active load screen with recipe viewer, Historical load search with details, and Chart information.
Load history includes recipe, process data, job information, load image, notes and user-defined details relevant to your operation
Shop traveler generation with barcoding
MRP/ERP integration
Shop templates and routings for quick job setup and step sequencing

Compact Load Entry

Order entry
Running on an SSi 9000 Series touch screen, Compact Load Entry provides load control at the touch screen
Works in conjunction with SSi’s Standard Load Entry software
Allows for load charging, recipe previewing, and bar code scanning
