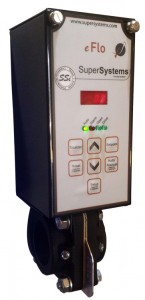

eFlo Totalizer

Electronic Flow Meter

eflo-totalizer
The eFlo Totalizer is an electronic flow measurement instrument
used to display current and totalized gas flow. With simple compatibility with existing controls, tracking gas flows has never been easier. Designed for use in the harshest industrial environments, eFlo Totalizer allows for easy replacement of manual flow meters and seamlessly integrates into existing systems.
Features and Benefits

Digital display with easy-to-use touch pad
Precision flow measurement
Utilizes Flow Meter View software
Easy retrofit for existing flow measuring equipment
Flow calibration can be certified while in use to meet CQI-9 requirements
NIST-traceable calibration
SCADA Integration: Current Flow, Totalized Flow
Built-in high/low alarms
Flow totalizing
Analog feedback for data acquisition
Integrated comms via Modbus over RS232/RS485 and Ethernet
Onboard data logging
USB connectivity
Six pipe sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Supported Gases


Natural Gas
Propane
Air
Hydrogen
Dissociated Ammonia
Nitrogen
Exothermic Gas
Endothermic Gas
Methane
Other Industrial Gases

Power Required:24VDC @ 400mA
Accuracy:±4%
Gas Temp. Limits:32°F to 150°F (0°C to 65.6°C)
Ambient Temp. Limits:32°F to 150°F (0°C to 65.6°C)
Flow Output Signal (Linear):4-20mA
Max. Output Signal Load:500Ω
Response Time:1 - 10 seconds
Communications:RS232, RS485, Ethernet
Communications Protocol:Modbus RTU/TCP
Flow Meter Pressure Limits:10 psig max. (Standard)
