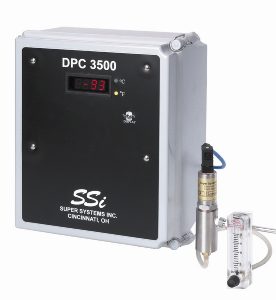

DPC3500

DPC3500

Continuous low range dew point analyzer.  Digital read out with communications or dew point retransmission for data acquisition.  Commonly used for the verification of hydrogen, nitrogen or argon gasses.

Dew point ranges from -148 to 20°F (-100 to -7°C)
Measures dew point in hydrocarbon fuels and plant air systems
Specifically suited for hydrogen/nitrogen/argon applications
Integral filters
LED digital readout

Standard Range:-148 to 20°F (-100 to -7°C)
Display:Digital
Accuracy and Repeatability:±1 °F (± 0.5 °C)
Operating Temperature Range:0 to 120°F (-17 to 49°C)
Power:115/240 VAC 60Hz
Resolution:± 1 °F (± 0.5 °C)
Zero and Span Drift:± 1 °F (± 0.5 °C) Maximum
Digital Communications:RS232 communications
Output:4-20mA
